By: CS2103T-F10-3      Since: Apr 2020      Licence: MIT

1. Setting up

Refer to the guide here.

2. Design

2.1. Architecture

ArchitectureDiagram
Figure 1. Architecture Diagram

The Architecture Diagram given above explains the high-level design of the App. Given below is a quick overview of each component.

The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the Using PlantUML guide to learn how to create and edit diagrams.

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.

  • At shut down: Shuts down the components and invokes cleanup method where necessary.

Commons represents a collection of classes used by multiple other components. The following class plays an important role at the architecture level:

  • LogsCenter : Used by many classes to write log messages to the App’s log file.

The rest of the App consists of four components.

  • UI: The UI of the App.

  • Logic: The command executor.

  • Model: Holds the data of the App in-memory.

  • Storage: Reads data from, and writes data to, the hard disk.

Each of the four components

  • Defines its API in an interface with the same name as the Component.

  • Exposes its functionality using a {Component Name}Manager class.

For example, the Logic component (see the class diagram given below) defines it’s API in the Logic.java interface and exposes its functionality using the LogicManager.java class.

LogicArchitecture
Figure 2. Architecture Diagram of the Logic Component

How the architecture components interact with each other (Loh Sze Ying)

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete i\1 after navigating to Address Book mode with nav ab.
The same type of interaction applies to other mode within NOVA, such as Schedule mode, Planner mode or Progress Tracker mode.

ArchitectureSequenceDiagram
Figure 3. Component interactions for delete i\1 command

The sections below give more details of each component.

2.2. UI component (Yap Wen Jun Bryan)

UiClassDiagram
Figure 4. Structure of the UI Component

API : Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay and HelpBox. All these, including the MainWindow, inherit from the abstract UiPart class.

The UI component uses JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files (HelpBox does not have a .fxml file) that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • Executes user commands using the Logic component.

  • Listens for changes to Model data so that the UI can be updated with the modified data.

2.3. Logic component (Chua Huixian)

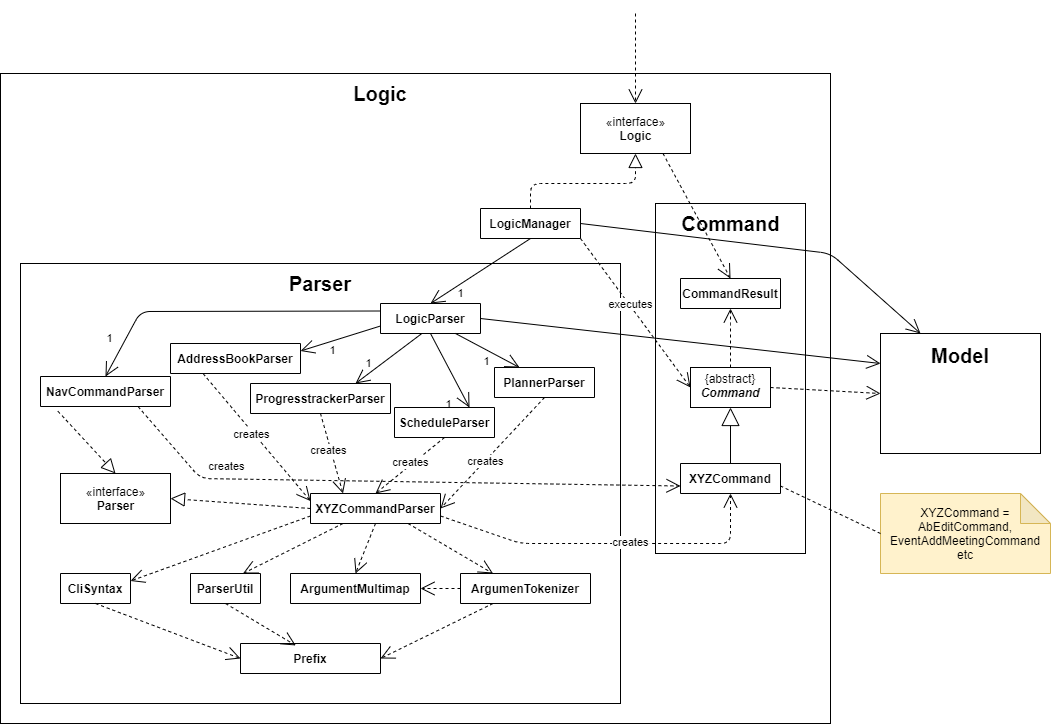

LogicClassDiagram
Figure 5. Structure of the Logic Component

API : Logic.java

  1. Logic uses the LogicParser class to determine which mode the user is in when they input a command.

  2. After which, the relevant parser is called (e.g. AddressBookParser).

  3. This results in a Command object which is executed by the LogicManager.

  4. The command execution can affect the Model (e.g. adding a person).

  5. The result of the command execution is encapsulated as a CommandResult object which is passed back to the Ui.

  6. In addition, the CommandResult object can also instruct the Ui to perform certain actions, such as displaying help to the user.

2.4. Model component (Terence)

ModelClassDiagram
Figure 6. Structure of the Model Component

API : Model.java

The Model,

  • stores a UserPref object that represents the user’s preferences.

  • stores the Address Book data.

  • stores a 'Schedule' object that represents the user’s schedule.

  • stores a 'ProgressTracker' object that represents the user’s progress in their project tasks.

  • exposes an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.

  • does not depend on any of the other three components.

2.5. Storage component

StorageClassDiagram
Figure 7. Structure of the Storage Component

API : Storage.java

The Storage component,

  • can save UserPref objects in json format and read it back.

  • can save NOVA’s data in json format and read it back.

2.6. Common classes (Loh Sze Ying)

Classes used by multiple components are in the seedu.nova.commons package. All of the classes under Commons work independently.

Most notably,

  • API : LogsCenter.java
    The LogsCenter is used by NOVA to display logs when running NOVA in terminal.

  • API : Messages.java
    The Messages is used by NOVA and deals with messages to display relating to NOVA’s features.

3. Implementation

This section describes some noteworthy details on how certain features are implemented.

3.1. Manage Events (Chua Huixian)

The manage events feature handles the events of the user, including meetings, consultations, study sessions and lessons. Users are able to:

  • add events

  • delete events

  • add notes to events

3.1.1. Implementation - Deleting an event

The delete feature allows users to remove events from the schedule. This feature is facilitated by ScheduleParser, EventDeleteCommandParser and EventDeleteCommand. The operation is exposed in the Model interface as Model#deleteEvent().

Given below is an example usage scenario and how the delete mechanism behaves at each step.

  1. The user does view t\2020-03-20 to view their events on 20th March 2020.

  2. The user executes delete t\2020-03-20 i\2 command to delete the second event on 20th March 2020.

  3. EventDeleteCommandParser creates a new EventDeleteCommand.

  4. LogicManager executes the EventDeleteCommand.

  5. Model#deleteEvent() is called, and the Schedule object in ModelManager is updated.

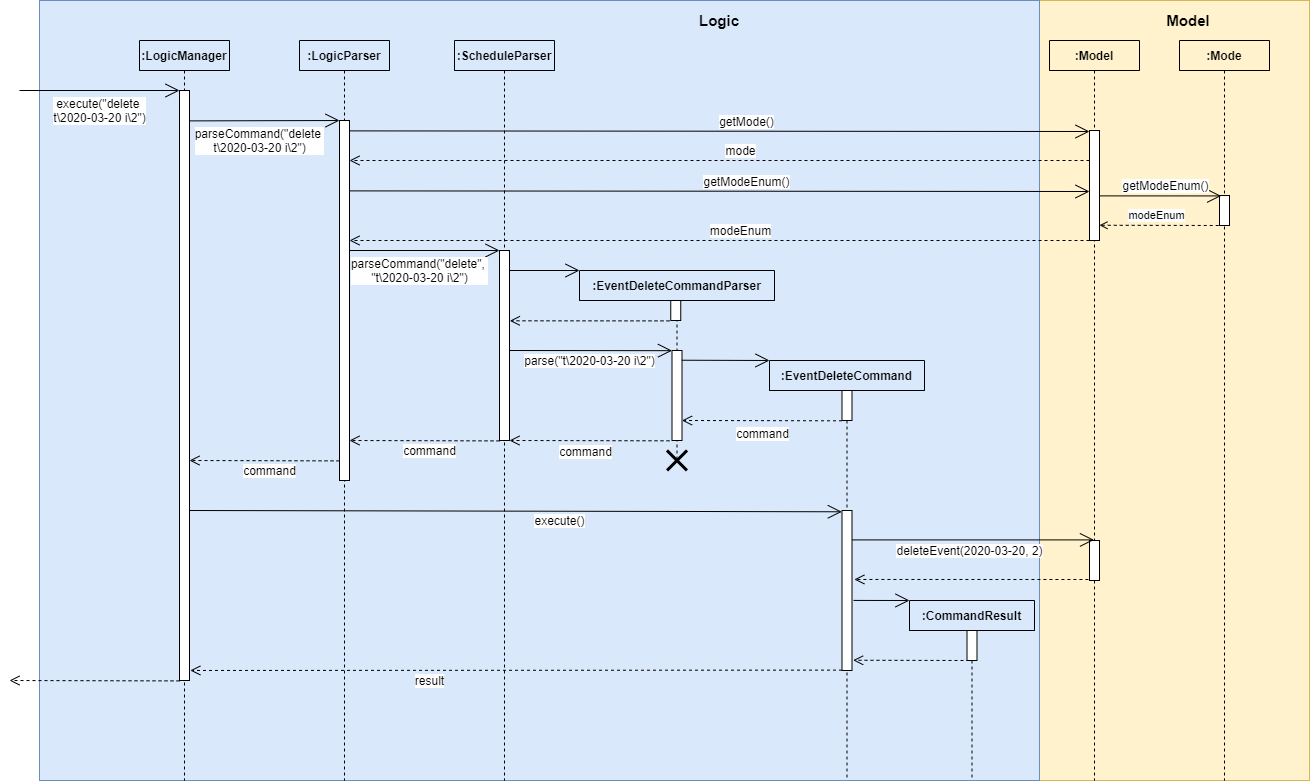

The following sequence diagram shows how the delete operation works:

EventDeleteSeqDiagram

The following activity diagram shows what happens when a user inputs a delete command:

EventDeleteActDiagram

3.1.2. Design Considerations

Aspect: Syntax of Deleting an Event

  • Alternative 1 (current choice): choosing the event by its date and its index in the list of events on that date

    • Pros: relatively short to type, greater ease of implementation

    • Cons: users have to view the list of events on that date before determining which event to mark as done

  • Alternative 2: choosing the event by description

    • Pros: more recognisable for users

    • Cons: difficulty in implementing as certain events may have the exact same descriptions

3.2. Address Book (Loh Sze Ying)

The address book feature handles the contact list of the users. To enter address book mode, users need to enter nav ab command. Users are able to:

  • add contacts

  • edit contacts

  • delete contacts

  • find contacts

  • list all contacts

  • list category specific contacts

  • add category specific remark for contacts

  • edit category specific remark for contacts

  • delete category specific remark for contacts

  • undo or redo command

  • add profile picture to contacts

  • delete profile picture to contacts

3.2.1. Implementation - Undo or redo command

The undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

  • VersionedAddressBook#commit() — Saves the current address book state in its history.

  • VersionedAddressBook#undo() — Restores the previous address book state from its history.

  • VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

UndoRedoState0

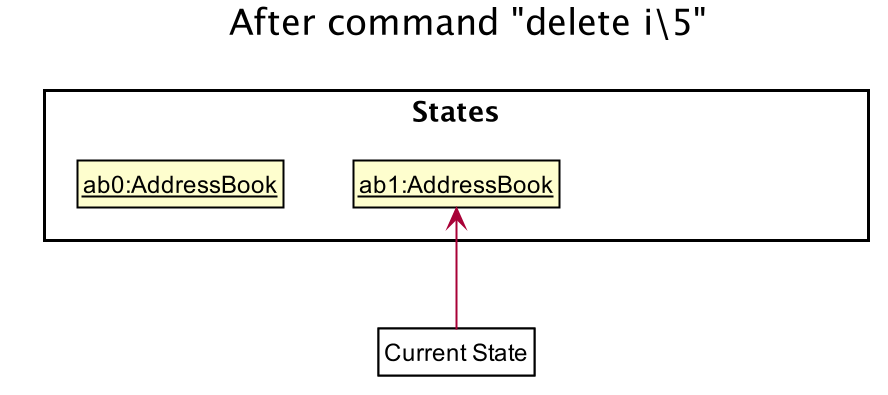

Step 2. The user executes delete i\5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete i\5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

UndoRedoState1

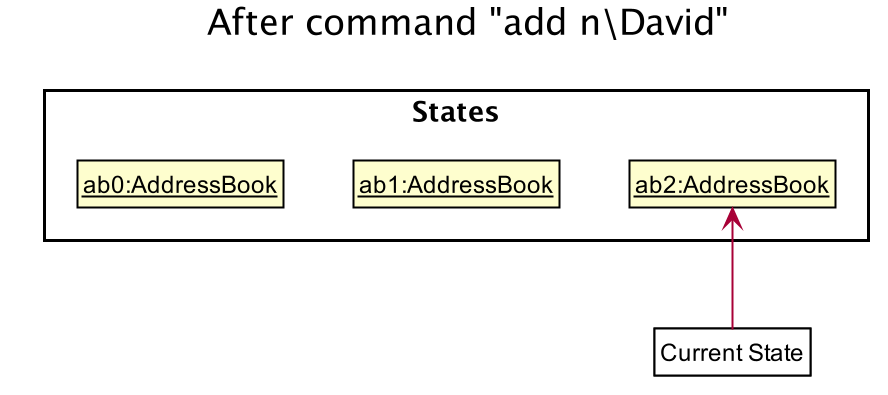

Step 3. The user executes add n\David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

UndoRedoState2
If a command fails its execution, it will not call Model#commitAddressBook(), so the address book state will not be saved into the addressBookStateList.

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

UndoRedoState3
If the currentStatePointer is at index 0, pointing to the initial address book state, then there are no previous address book states to restore. The undo command uses Model#canUndoAddressBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the undo.

The following sequence diagram shows how the undo operation works:

UndoSequenceDiagram

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

If the currentStatePointer is at index addressBookStateList.size() - 1, pointing to the latest address book state, then there are no undone address book states to restore. The redo command uses Model#canRedoAddressBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the redo.

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, list c\classmate, list c\teammate or find, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

UndoRedoState4

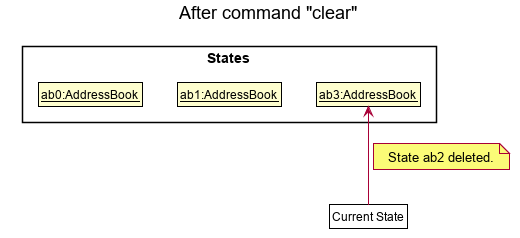

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. We designed it this way because it no longer makes sense to redo the add n\David …​ command. This is the behavior that most modern desktop applications follow.

UndoRedoState5

The following activity diagram summarizes what happens when a user executes a new command:

CommitActivityDiagram

3.2.2. Design Considerations - Undo or redo command

Aspect: How undo & redo executes

  • Alternative 1 (current choice): Saves the entire address book.

    • Pros: Easy to implement.

    • Cons: May have performance issues in terms of memory usage.

  • Alternative 2: Individual command knows how to undo/redo by itself.

    • Pros: Will use less memory (e.g. for delete, just save the person being deleted).

    • Cons: We must ensure that the implementation of each individual command are correct.

Aspect: Data structure to support the undo/redo commands

  • Alternative 1 (current choice): Use a list to store the history of address book states.

    • Pros: Easy for new Computer Science student undergraduates to understand, who are likely to be the new incoming developers of our project.

    • Cons: Logic is duplicated twice. For example, when a new command is executed, we must remember to update both HistoryManager and VersionedAddressBook.

  • Alternative 2: Use HistoryManager for undo/redo

    • Pros: We do not need to maintain a separate list, and just reuse what is already in the codebase.

    • Cons: Requires dealing with commands that have already been undone: We must remember to skip these commands. Violates Single Responsibility Principle and Separation of Concerns as HistoryManager now needs to do two different things.

3.2.3. Implementation - Delete a contact

The edit feature allows users to edit a contact from Address Book. This feature is facilitated by AddressBookParser, AbDeleteCommandParser and AbDeleteCommand. The operation is exposed in the Model interface as Model#deletePerson().

Given below is an example usage scenario and how the delete mechanism behaves at each step.

  1. The user does list, list c\classmate, list c\teammate, or find n\[name] to view their contacts.

  2. The user executes delete i\1 command to delete the first contact.

  3. AbDeleteCommandParser creates a new AbDeleteCommand.

  4. LogicManager executes the AbDeleteCommand.

  5. Model#deletePerson() is called, and the AddressBook object in ModelManager is updated.

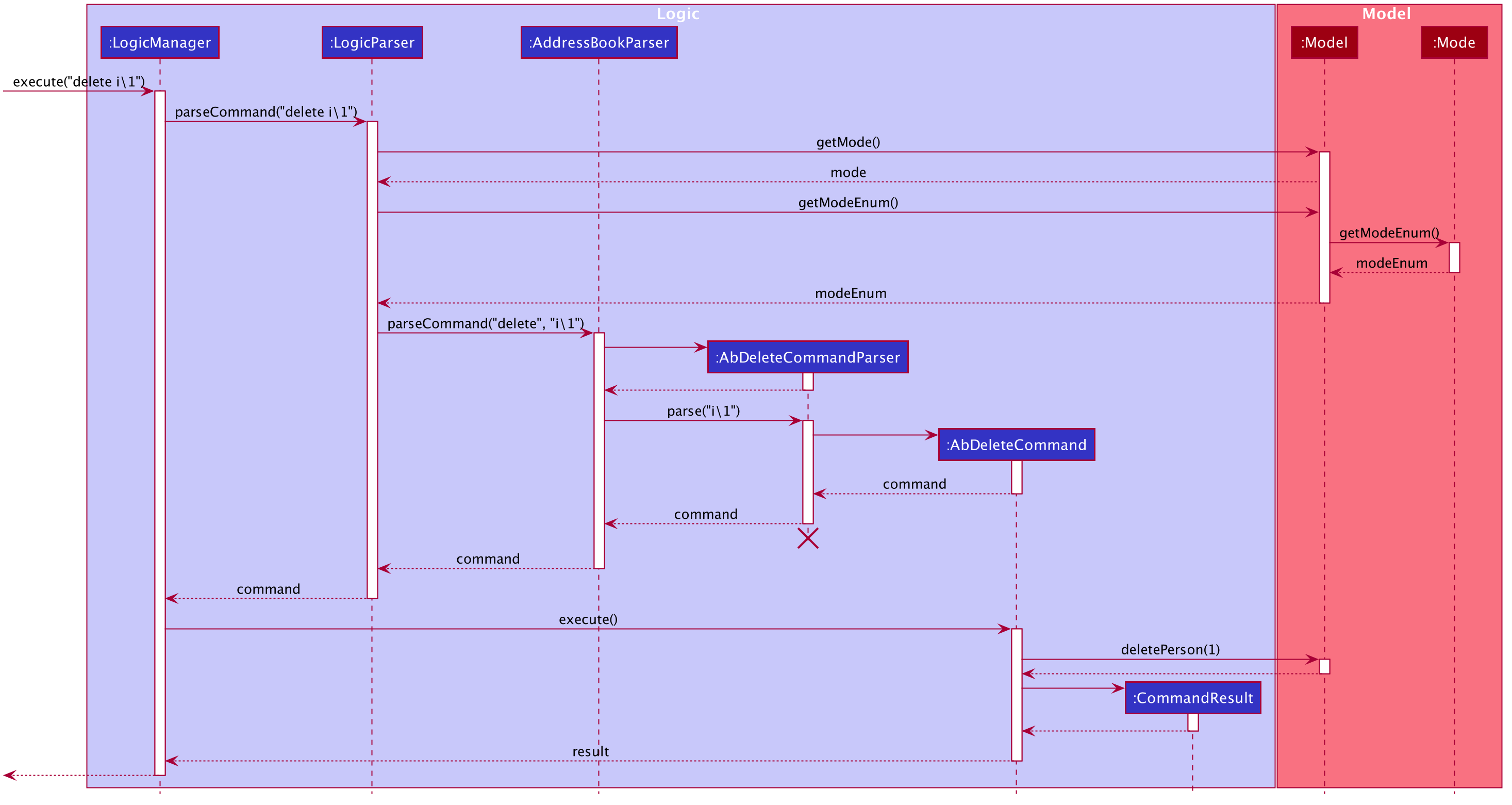

The following sequence diagram shows how the delete operation works:

AbDeleteSequenceDiagram

The following activity diagram shows how the delete mechanism works:

AbDeleteActivityDiagram

3.2.4. Design Considerations - Delete a contact

Aspect: Deleting a contact by index or name

  • Alternative 1 (current choice): Use index tag to delete contact

    • Pros: Shorter command to type by using index

    • Cons: Users need to use list, list c\classmate, list c\teammate or find n\[name] command before deleting contact

  • Alternative 2: Use name to delete contact

    • Pros: No need to use list, list c\classmate, list c\teammate or find n\[name] prior to deleting contact

    • Cons: Need to handle deletion of contacts with the same name

3.3. List tasks under IP project (Yap Wen Jun Bryan)

The list tasks feature for the IP project allows the user to view a list of tasks that were added.

3.3.1. Implementation

Given below is an example usage scenario and how the list tasks mechanism behaves at each step.

  1. The user keys in list p\ip w\2 into the command box.

  2. The user executes list p\ip w\2 to view the list of tasks in week 2 of the IP project.

  3. PtListCommandParser creates a new PtListCommand.

  4. LogicManager executes the PtListCommand.

  5. Model#listTasks() is called and the list of tasks is retrieved.

The following sequence diagram shows how the list tasks operation works:

PtSeqDiagram

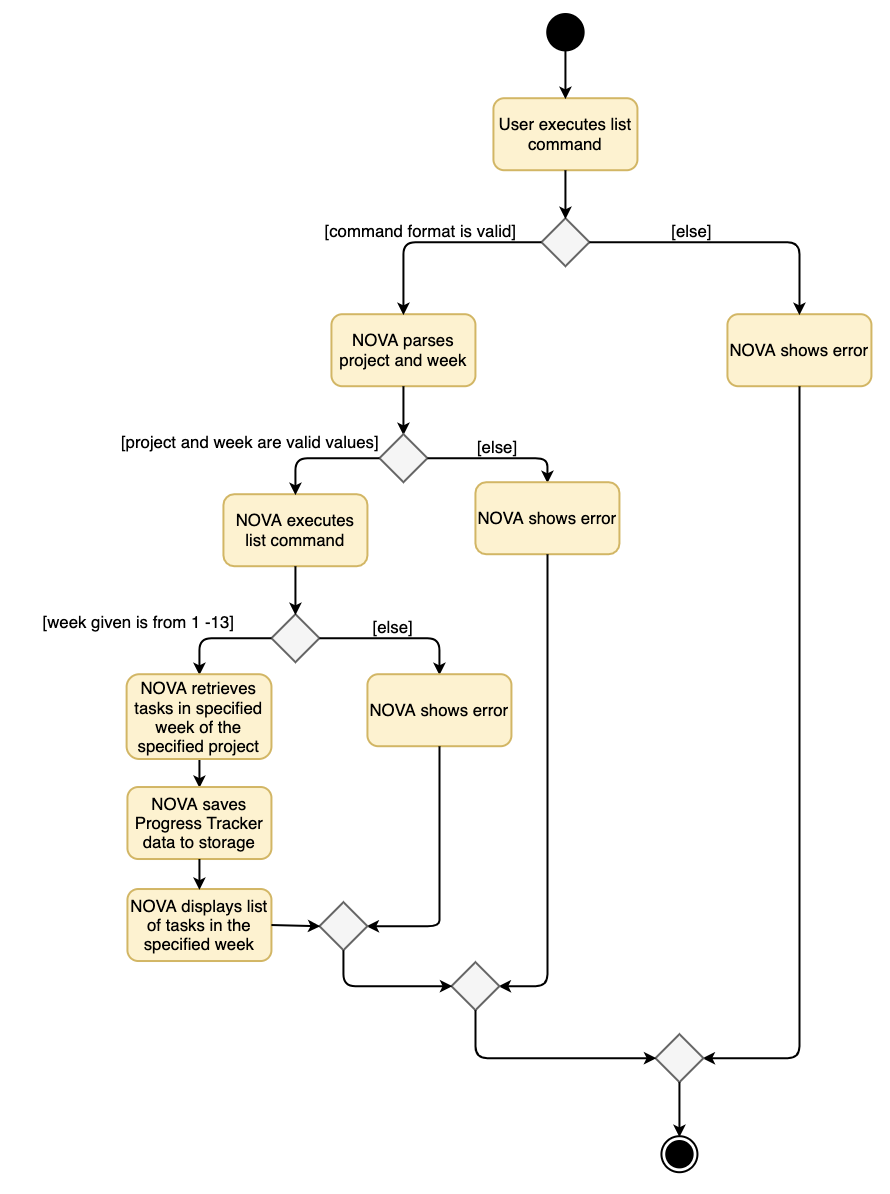

The following activity diagram shows what happens when a user inputs a list command:

ListPtActivityDiagram

3.3.2. Design Considerations

Aspect: Adding choice of week to view tasks

  • Alternative 1 (current choice): adding in choice of week to view tasks

    • Pros: more freedom to choose what to see as a user

    • Cons: longer command to type

  • Alternative 2: listing out the whole project tasks rather than letting user choose based on week

    • Pros: shorter command to type and user can see all their tasks at once

    • Cons: if user wants to see tasks only for a specific week will be harder to scroll and find

3.4. View schedule (Terence)

The view schedule feature allows users to view the events they have added into the schedule. Users are able to view the schedule by two time frames:

  • By date

  • By week

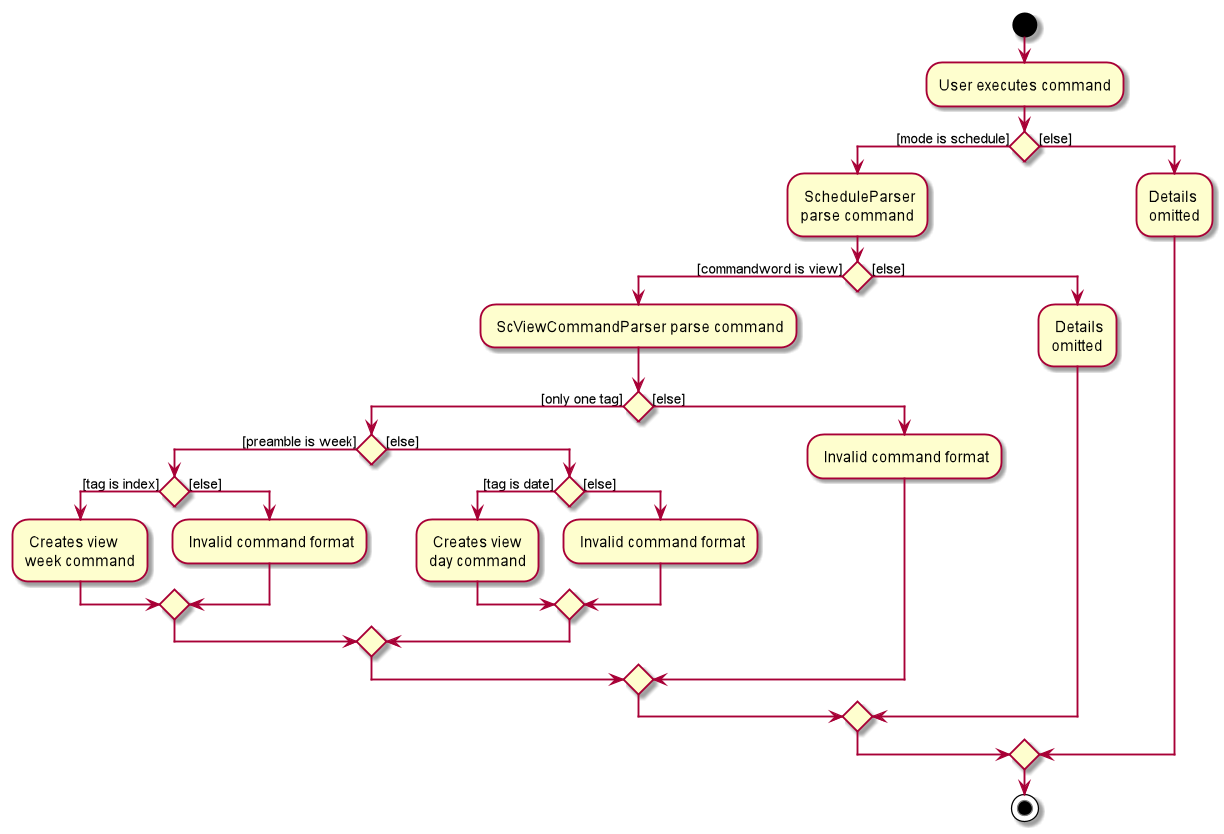

The following activity diagram shows what happens when a user inputs a view command:

ViewCommandActivityDiagram

3.4.1. Implementation - View schedule by date

The view feature allows users to see the events happening on the specified date. This feature is facilitated by ScheduleParser, ScViewCommandParser and ScViewDayCommand. The operation is exposed in the Model interface as Model#view(LocalDate).

Given below is an example usage scenario and how the view by date mechanism behaves at each step.

  1. The user keys in 'view t\2020-03-10' into the command box.

  2. The user executes 'view t\2020-03-10' to view their schedule on the 10 Mar 2020.

  3. LogicManager calls LogicParser to parse the command.

  4. LogicParser gets the mode from Model and passes the command word and the argument to ScheduleParser.

  5. ScheduleParser checks the command word and calls ScViewDayCommandParser.

  6. 'ScViewDayCommandParser' creates a new 'ScViewDayCommand'.

  7. 'LogicManager' executes the 'ScViewDayCommand'.

  8. 'ModelManger#viewSechdule(LocalDate)' is called and the schedule for the day is retrieved.

The following sequence diagram shows how the view tasks operation works:

viewDaySequenceDiagram

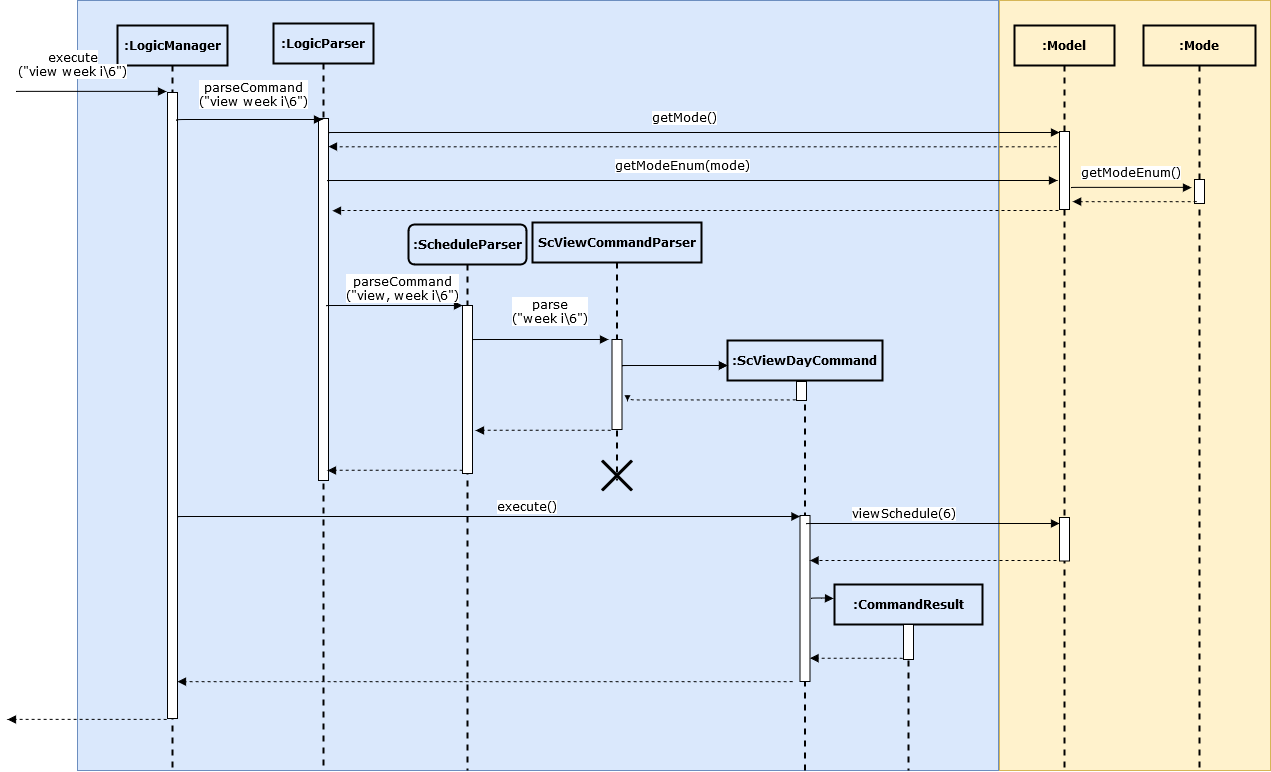

View week: Given below is an example usage scenario and how the view week mechanism behaves at each step.

  1. The user keys in 'view week i\6' into the command box.

  2. The user executes 'view week i\6' to view their schedule on the 6th week.

  3. LogicManager calls LogicParser to parse the command.

  4. LogicParser gets the mode from Model and passes the command word and the argument to ScheduleParser.

  5. ScheduleParser checks the command word and the preamble and calls ScViewWeekCommandParser.

  6. 'ScViewWeekCommandParser' creates a new 'ScViewWeekCommand'.

  7. 'LogicManager' executes the 'ScViewWeekCommand'.

  8. 'ModelManger#viewSechdule(int)' is called and the schedule for the week is retrieved.

3.4.2. Implementation - View schedule by week

The view feature allows users to see the events happening throughout the specified week. This feature is facilitated by ScheduleParser, ScViewCommandParser and ScViewWeekCommand. The operation is exposed in the Model interface as Model#view(int).

The following sequence diagram shows what happens when a user inputs a view week command:

viewWeekSequenceDiagram

3.4.3. Design Considerations

Aspect: View schedule by at most week and not month.

  • Alternative 1 (current choice): View schedule up to week

    • Pros: Easier to fit the events into the display.

    • Cons: Less ways for user to view schedule.

  • Alternative 2: View schedule up to month

    • Pros: User can see their whole month’s schedule at once.

    • Cons: Might be too long and cannot fit into the display box. Time to gather all the events may be too long.

3.5. View available free slot of a specific day (Tan Wah Ken)

The view free slots feature allows the user to view their available free slots on their schedule.

3.5.1. Implementation

Given below is an example usage scenario and how the view free slot mechanism behaves at each step.

  1. The user keys in 'freeslot t\2020-03-10' into the command box.

  2. The user executes 'freeslot t\2020-03-10' to view the free slots on their schedule on the 10th of March 2020.

  3. 'ScViewFreeSlotCommandParser' creates a new 'ScViewFreeSlotCommand'.

  4. 'LogicManager' executes the 'ScViewFreeSlotCommand'.

  5. 'ModelManger#viewFreeSlot()' is called and the free slots for the day is retrieved.

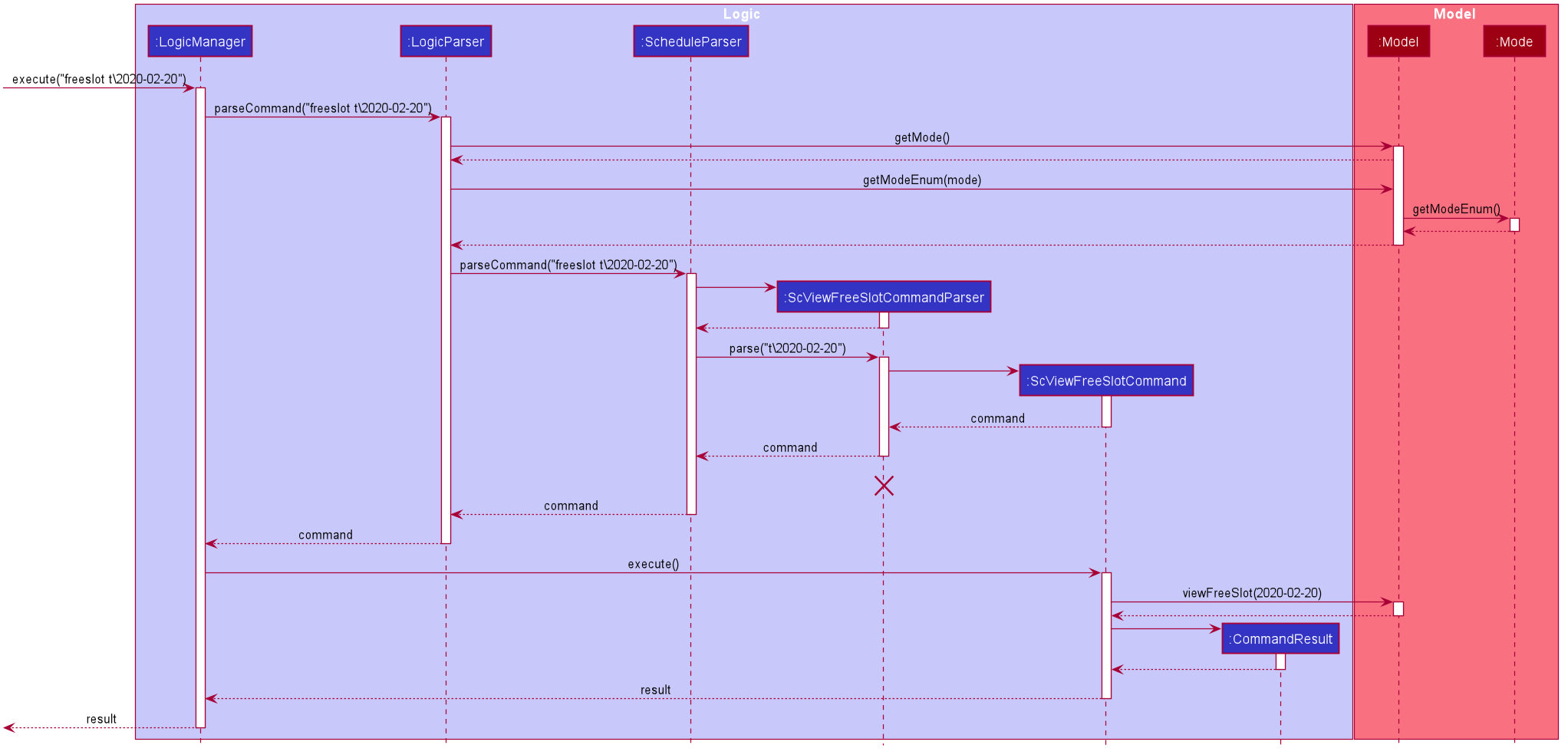

The following sequence diagram shows how the view tasks operation works:

ScViewFreeSlotDiagram

3.5.2. Design Considerations

Aspect: Calculating free slots given a schedule

  • Alternative 1 (current choice): Embeds a free slot data structure to keep track of the free slots whenever events are added

    • Pros: no need to calculate free slots whenever user execute freeslot.

    • Cons: overhead to add event commands, making its execution slower.

  • Alternative 2: Calculates free slot based on the events whenever user executes freeslot

    • Pros: easier to implement.

    • Cons: slower freeslot execution.

3.6. Schedule events based on a task in plan (Tan Wah Ken)

The plan feature allows the user to create an event based on the task user created in the plan.

3.6.1. Implementation

Given below is an example usage scenario and how the plan task mechanism behaves at each step.

  1. The user keys in 'schedule p\task name t\2020-03-10' into the command box.

  2. The user executes 'schedule p\task name t\2020-03-10' to create an event "task name" on their schedule on the 10th of March 2020.

  3. 'PlannerScheduleTaskCommandParser' creates a new 'PlannerScheduleTaskCommand'.

  4. 'LogicManager' executes the 'PlannerScheduleTaskCommand'.

  5. 'ModelManger#searchTask()' is called to search for the task user specified.

  6. 'ModelManger#generateTaskEvent()' is called and one event with time determined by algorithm is created on the day in schedule.

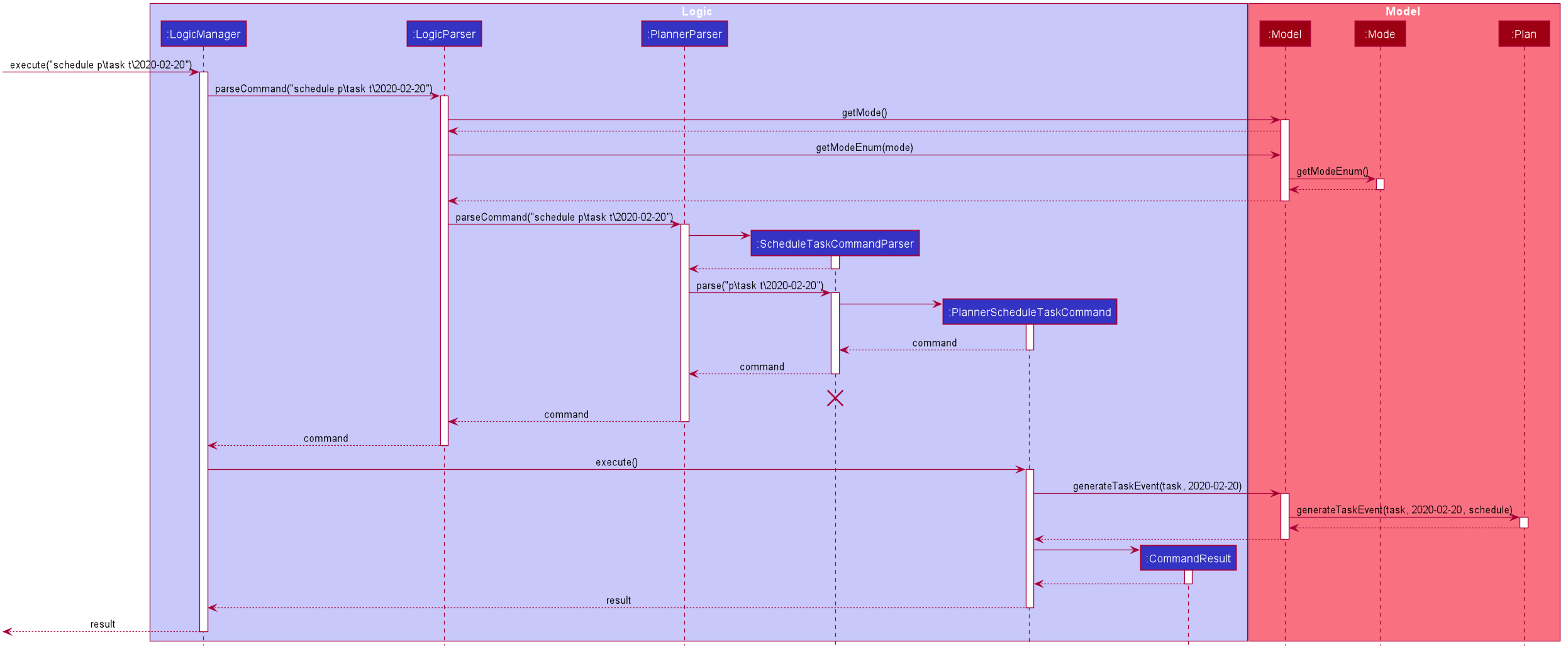

The following sequence diagram shows how the schedule task operation works:

PlannerScheduleTaskSequenceDiagram

The following activity diagram summarizes what happens when a user schedules a task:

PlannerScheduleTaskActivityDiagram

3.6.2. Design Considerations

Aspect: Calculating best fit time frame for a task

  • Alternative 1 (current choice): Plan gets free slot from schedule and generate event based on it.

    • Pros: Isolation of modules.

    • Cons: Redundant code.

  • Alternative 2: Schedule decides whether to schedule or discard an event generated from task.

    • Pros: more robust schedule.

    • Cons: more difficult to implement.

3.7. Logging

We are using java.util.logging package for logging. The LogsCenter class is used to manage the logging levels and logging destinations.

  • The logging level can be controlled using the logLevel setting in the configuration file (See Section 3.8, “Configuration”)

  • The Logger for a class can be obtained using LogsCenter.getLogger(Class) which will log messages according to the specified logging level

  • Currently log messages are output through: Console and to a .log file.

Logging Levels

  • SEVERE : Critical problem detected which may possibly cause the termination of the application

  • WARNING : Can continue, but with caution

  • INFO : Information showing the noteworthy actions by the App

  • FINE : Details that is not usually noteworthy but may be useful in debugging e.g. print the actual list instead of just its size

3.8. Configuration

Certain properties of the application can be controlled (e.g user prefs file location, logging level) through the configuration file (default: config.json).

4. Documentation

Refer to the guide here.

5. Testing

Refer to the guide here.

6. Dev Ops

Refer to the guide here.

Appendix A: Product Scope

Target user profile:

  • prefer desktop apps over other types

  • can type fast

  • prefers typing over mouse input

  • is reasonably comfortable using CLI apps

  • is a CS2103T student

Value proposition: a one-stop study aid platform for CS2103T students

Appendix B: User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I can …​ So that I …​

* * *

student

add classmate or teammate’s name and contact information

contact them easily

* * *

student

edit classmate or teammate’s name and contact information

Edit them if the information are changed

* * *

student

delete classmate or teammate’s contact

delete if not necessary anymore

* * *

student

categorise contacts into teammate or classmate

sort contacts according to category

* * *

student

add category specific remark

filter out a contact’s remark according to type of contact

* * *

student

edit category specific remark

edit remark if necessary

* * *

student

delete category specific remark

delete remark if it is not needed

*

student

add profile picture to added contact

know at a glance who is the person in my contact

*

student

edit profile picture to added contact

edit the picture if changes are necessary

*

student

delete profile picture to added contact

don’t need the contact picture within NOVA anymore

* * *

student

create meeting events

can keep track of my schedule

* * *

student

create study session events

can keep track of my schedule

* * *

student

create consultation events

can keep track of my schedule

* * *

student

create lesson events

can keep track of my schedule

* * *

student

note down the location of the meeting

know where to go

* * *

student

delete events

can get rid of events that I do not need anymore

* * *

student

add notes to events

can jot down additional details about the events

* *

student

mark events as done

know which events I have completed

* *

student

find events

can check if I have any specific events according to keyword(s)

* *

student

repeat events

can add multiple similar events at one go

* * *

forgetful student

keep track of my project tasks

make sure all my project tasks are completed on time

* * *

student

mark tasks as done

track how many tasks I have finished

* * *

student

view tasks added

see the tasks I have to finish

* * *

student

add notes to project tasks

keep track of details regarding the tasks

* * *

student

delete project tasks

remove unwanted project tasks from the tracker

* * *

student

add project tasks

keep track of those project tasks

* * *

student

delete notes

remove unwanted notes from tasks

* *

lazy student

edit project tasks

can correct mistakes made to task descriptions with little effort

* *

lazy student

edit notes to project tasks

can correct mistakes made to notes with little effort

* * *

Student

View my schedule for a day

Know the flow of events on that day

* * *

Student

View my schedule for a week

Know what will happen for that week

*

Student

View my timetable

Can check when my classes are

* *

Student

Easily find my free slots without looking at my schedule

Do not need to strain my eyes

* *

Forgetful student

Set reminders for upcoming events

Will remember to attend them

* * *

Student

Add tasks to study plan

Can add study tasks to my study plan

* * *

Student

Delete tasks on study plan

Can delete study tasks if I don’t need it anymore

* * *

Student

Generate event from a task

If I feel like I want to do a study task today, I can generate an event on today’s schedule so that I can keep up with my study plan.

* *

Student

View statistics of my task progress

Can see how much I’ve done for each task on my study plan.

{More to be added}

Appendix C: Use Cases

(For all use cases below, the System is the nova and the Actor is the student, unless specified otherwise)

Use case 1: Add a contact (Loh Sze Ying)

MSS

  1. Student enters add command with the contact’s name, phone number, email and category

  2. NOVA saves the contact

    Use case ends.

Extensions

  • 1a. Student did not include compulsory field

    • 1a1. NOVA informs student to include compulsory field

      Use case resumes at step 1

  • 1b. Student did not adhere to format required for adding contact

    • 1b1. NOVA informs student that the format is invalid, and provides an example of a correct format

      Use case resumes at step 1

Use case 2: List all contacts (Loh Sze Ying)

MSS

  1. Student enters list command

  2. NOVA list all the contacts

    Use case ends

Extensions

  • 1a. There is no contacts saved

    • 1a1. NOVA informs student that the list is empty

      Use case end

Use case 3: List category specific contacts (Loh Sze Ying)

MSS

  1. Student enters list category command

  2. NOVA list all the contacts under that category

    Use case ends

Extensions

  • 1a. There is no contacts saved under that category

    • 1a1. NOVA informs student that the list of that category is empty

      Use case end

Use case 4: Find saved contacts (Loh Sze Ying)

MSS

  1. Student enters find command

  2. NOVA finds the name of contact that the student typed and list all the matching names

    Use case ends

Extensions

  • 1a. There is no contact that matches what the student type

    • 1a1. NOVA prints an empty list

      Use case end

Use case 5: Edit a contact (Loh Sze Ying)

MSS

  1. Student used list, list c\classmate, list c\teammate or find command

  2. Student enters edit command with index, and at least 1 field to edit

  3. NOVA saves the edited contact

    Use case ends

Extensions

  • 1a. Student did not use list, list c\classmate, list c\teammate or find command before using edit command

    • 1a1. Student edits information of the wrong contact, and NOVA informs the student to use undo command if wrong contact is edited

      Use case resumes at step 1

  • 2a. Student did not adhere to format required for editing contact

    • 2a1. NOVA informs student that the format is invalid, and provides an example of a correct format

      Use case resumes at step 2

  • 2b. Student did not include at least 1 compulsory field

    • 2b1. NOVA informs student to include at least 1 compulsory field

      Use case resumes at step 2

Use case 6: Delete a contact (Loh Sze Ying)

MSS

  1. Student used list, list c\classmate, list c\teammate or find command

  2. Student enters delete command

  3. NOVA deletes the contact

    Use case ends

Extensions

  • 1a. Student did not use list, list c\classmate, list c\teammate or find command before using delete command

    • 1a1. Student deletes the wrong contact, and NOVA informs the student to use undo command if wrong contact is deleted

      Use case resumes at step 1

  • 2a. NOVA cannot find the contact in the contact list

    • 2a1. NOVA informs student that the contact to delete does not exist

      Use case resumes at step 2

  • 2b. Student provides a wrong format to delete

    • 2b1. NOVA informs student that the format is invalid, and provides an example of a correct format

      Use case resumes at step 2

Use case 7: Add, edit or delete remark to a contact (Loh Sze Ying)

MSS

  1. Student used list, list c\classmate, list c\teammate or find command

  2. Student enters remark command

  3. NOVA adds, edits or deletes remark to a contact

    Use case ends

Extensions

  • 1a. Student did not use list, list c\classmate, list c\teammate or find command before using remark command

    • 1a1. Student adds, edits or deletes remark of the wrong contact, and NOVA informs the student to use undo command if student add, edit or delete remark on the wrong contact

      Use case resumes at step 1

  • 2a. NOVA cannot find the contact in the contact list

    • 2a1. NOVA informs student that the contact to add, edit or delete mark does not exist

      Use case resumes at step 2

  • 2b. Student provides a wrong format to add, edit or delete

    • 2b1. NOVA informs student that the format is invalid, and provides an example of a correct format

      Use case resumes at step 2

Use case 8: Undoing in address book (Loh Sze Ying)

MSS

  1. Student used add, edit, delete or remark prior

  2. Student enters undo command

  3. NOVA undone the changes that the student made

    Use case ends

  • 1a. Student did not use add, edit, delete or remark prior to using undo

    • 1a1. NOVA informs the student that there are no more commands to undo

      resumes at step 1

Use case 9: Redoing in address book (Loh Sze Ying)

MSS

  1. Student used undo successfully prior to using redo

  2. Student enters redo command

  3. NOVA redo the changes that the student made

    Use case ends

Extensions

  • 1a. Student did not use undo prior to using redo

    • 1a1. NOVA informs the student that there are no more commands to redo

      Use case resumes at step 1

Use case 10: Adding a consultation event (Chua Huixian)

MSS

  1. Student enters consultation command with details of the consultation

  2. NOVA adds consultation event to the schedule

    Use case ends.

Extensions

  • 1a. NOVA detects error in data inputted

    • 1a1. NOVA informs student of the error

      Use case ends.

Use case 11: Delete an event (Chua Huixian)

MSS

  1. Student enters delete command with details of the event

  2. NOVA deletes the event

    Use case ends.

Extensions

  • 1a. NOVA cannot find the event given

    • 1a1. NOVA informs student that the event does not exist

      Use case ends.

Use case 12: Adding a note to an event (Chua Huixian)

MSS

  1. Student enters note command with details of the event

  2. NOVA adds note to the event

    Use case ends.

Extensions

  • 1a. NOVA cannot find the event given

    • 1a1. NOVA informs student that the event does not exist

Use case 13: Add task to a project of progress tracker (Yap Wen Jun Bryan)

MSS

  1. User enter command to add task to a project.

  2. Progress tracker adds task to the project.

    Use case ends.

Extensions

  • 1a. No such project exist.

  • 1a1. NOVA shows an error message.

    Use case ends.

Use case 14: Edit a task (Yap Wen Jun Bryan)

MSS

  1. User enter command to edit task.

  2. Progress tracker replaces old task description with new description.

    Use case ends.

Extensions

  • 1a. No such task exist.

  • 1a1. NOVA shows an error message.

    Use case ends.

Use case 15: Delete a task (Yap Wen Jun Bryan)

MSS

  1. User enter command to delete task.

  2. Progress tracker deletes task.

    Use case ends.

Extensions

  • 1a. Task to be deleted does not exist.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 16: List tasks in a week of a project (Yap Wen Jun Bryan)

MSS

  1. User enter command to list tasks.

  2. Progress tracker lists task.

    Use case ends.

Extensions

  • 1a. No such tasks exists in the week specified.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 17: Set an added task as done (Yap Wen Jun Bryan)

MSS

  1. User enter command to set task as done.

  2. Progress tracker sets task as done.

    Use case ends.

Extensions

  • 1a. No such tasks exists.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 18: Add notes to a task in progress tracker (Yap Wen Jun Bryan)

MSS

  1. User enter command to add notes to the project task.

  2. Progress tracker adds notes to the project task.

    Use case ends.

Extensions

  • 1a. No such project task exist.

  • 1a1. NOVA shows an error message.

    Use case ends.

Use case 19: Edit a note (Yap Wen Jun Bryan)

MSS

  1. User enter command to edit note.

  2. Progress tracker replace old note with new note.

    Use case ends.

Extensions

  • 1a. No prior note was added.

  • 1a1. NOVA shows an error message.

    Use case ends.

Use case 20: Delete a note (Yap Wen Jun Bryan)

MSS

  1. User enter command to delete note.

  2. Progress tracker deletes note.

    Use case ends.

Extensions

  • 1a. Note to be deleted does not exist.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 21: View the schedule for a day

MSS

  1. User requests for the schedule of a day.

  2. NOVA shows the schedule for the day.

    Use case ends.

Extensions

  • 1a. User enters the wrong format.

  • 1a1. NOVA displays the correct format for the command.

  • 2a. The schedule for the day is empty.

  • 2a1. NOVA displays that day does not have any events.

    Use case ends.

Use case 22: View the schedule for a week

MSS

  1. User requests for the schedule of a week.

  2. NOVA shows the schedule for the week.

    Use case ends.

Extensions

  • 1a. User enters the wrong format.

  • 1a1. NOVA displays the correct format for the command.

  • 2a. The schedule for the week is empty.

  • 2a1. NOVA displays that week does not have any events.

    Use case ends.

Use case 23: User add a task into study plan.

MSS

  1. User enter command to create a task with name specified by user.

  2. Study Planner of NOVA adds the task into study plan.

    Use case ends.

Extensions

  • 1a. There is already a task with the same name.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 24: User add a task into study plan

MSS

  1. User enter command to delete a task with name specified by user.

  2. Study Planner of NOVA deletes the task.

    Use case ends.

Extensions

  • 1a. No task with the name specified exists in study plan.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 25: User view statistics of every tasks in study plan

MSS

  1. User enter command to view statistics of every tasks in study plan.

  2. NOVA calculates and shows all the statistics of every task.

    Use case ends.

Extensions

  • 1a. No task in study plan.

  • 1a1. NOVA shows error message.

    Use case ends.

Use case 26: User schedules a task into a particular day.

MSS

  1. User enter command to schedules a task into a particular day.

  2. NOVA generates and adds the event into schedule.

    Use case ends.

Extensions

  • 1a. Unable to generate event.

  • 1a1. NOVA shows error message.

    Use case ends.

{More to be added}

Appendix D: Non Functional Requirements

  1. The application should work on any mainstream OS provided that Java 11 or above is installed.

  2. The application should work on both 32-bit and 64-bit environments.

  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

  4. The application should work without internet connection.

  5. The application should respond to every command within one second.

  6. The application should be easily modifiable to meet changing curriculum of CS2103T.

{More to be added}

Appendix E: Glossary

Mainstream OS

Windows, Linux, OS-X

Appendix F: Instructions for Manual Testing

Given below are instructions to test the app manually.

These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

F.1. Launch

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file
      Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

F.2. Shutdown (Yap Wen Jun Bryan)

  1. Exiting the application

    1. Enter exit in the command line.

F.3. Deleting a person in Address Book (Loh Sze Ying)

  1. Enter address book mode via nav ab

  2. Deleting a person while all persons are listed

    1. Prerequisites: List contacts using the list, list c\classmate, list c\teammate or find command. There are multiple contacts in the list.

    2. Test case: delete i\1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.

    3. Test case: delete i\0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

    4. Other incorrect delete commands to try: delete, delete i\x (where x is larger than the list size), delete x (where x is number or letter) Expected: Similar to previous.

F.4. Adding a project task in Progress Tracker (Yap Wen Jun Bryan)

  1. Enter progress tracker mode via nav progresstracker

  2. Adding a project task

    1. Test case: add p\ip w\1 d\new task
      Expected: New project task with description "new task" is added to IP project week 1. Message showing successful execution is shown.

    2. Test case: add p\ip w\14 d\new task
      Expected: No new project task is added. Error details shown in the status message.

    3. Other incorrect add commands to try: add, add p\ppp w\1 d\new task.
      Expected: Similar to previous.

F.5. Saving data (Yap Wen Jun Bryan)

  1. Dealing with corrupted data file

    1. Edit the Nova data file to contain invalid data.
      Example: Adding a @ to a week in a ptTask.

    2. Run the application. The application should start with an empty Nova data file.

  2. Dealing with missing data file

    1. Delete the current Nova data file.

    2. Run the application. The application should start with a sample Nova data file with pre-included data.

F.6. View schedule (Terence)

  1. Enter schedule mode via nav schedule

  2. View the schedule

    1. Prerequisite: An event has been added to 13 Jan 2020.

    2. Test case: view t\2020-01-13
      Expected: The event that was pre-added will be displayed.

    3. Test case: view t\2020-01-12
      Expected: Error message is shown to tell user that the date is out of the range of schedule.

F.7. Adding an event (Chua Huixian)

  1. Enter schedule mode via nav schedule

  2. Adding an event

    1. Test case: meeting d\DG Meeting v\COM1 t\2020-03-13 13:00 14:00
      Expected: A meeting event will be added to the schedule. The details of the meeting will be displayed.

    2. Test case: meeting d\DG Meeting v\COM1 t\2020-03-13 14:00 12:00
      Expected: Error message is shown. The end time must be later than start time.

    3. Other incorrect commands to try: meeting, meeting d\DG Meeting v\COM1 t\2020-03-13 14:00.
      Expected: Error messages will be shown as well.
